Two 7.2” 2-Stage Tangential By-Pass Motors

• Cyclonic Filtration
• 38 Qt. Dirt Capacity
• DB Rating w/ Vented Exhaust: 78
• Dimensions
Power Unit
Dia: 13-5/8 in.
Ht: 30-3/4 in.
• Up to total Sq. Ft. : 18,000+

Motor Specs
Voltage…………………………………….240
Max Amps………………………………16.4
Max Airwatts…………………………..1268
Airflow…………………………………….229 CFM
Sealed Vacuum………………………..137 “H2O

S3600 Unit Specification

• Ametek Lamb two 7.2” tangential bypass motor provides powerful cleaning capabilities for deep cleaning of your home.

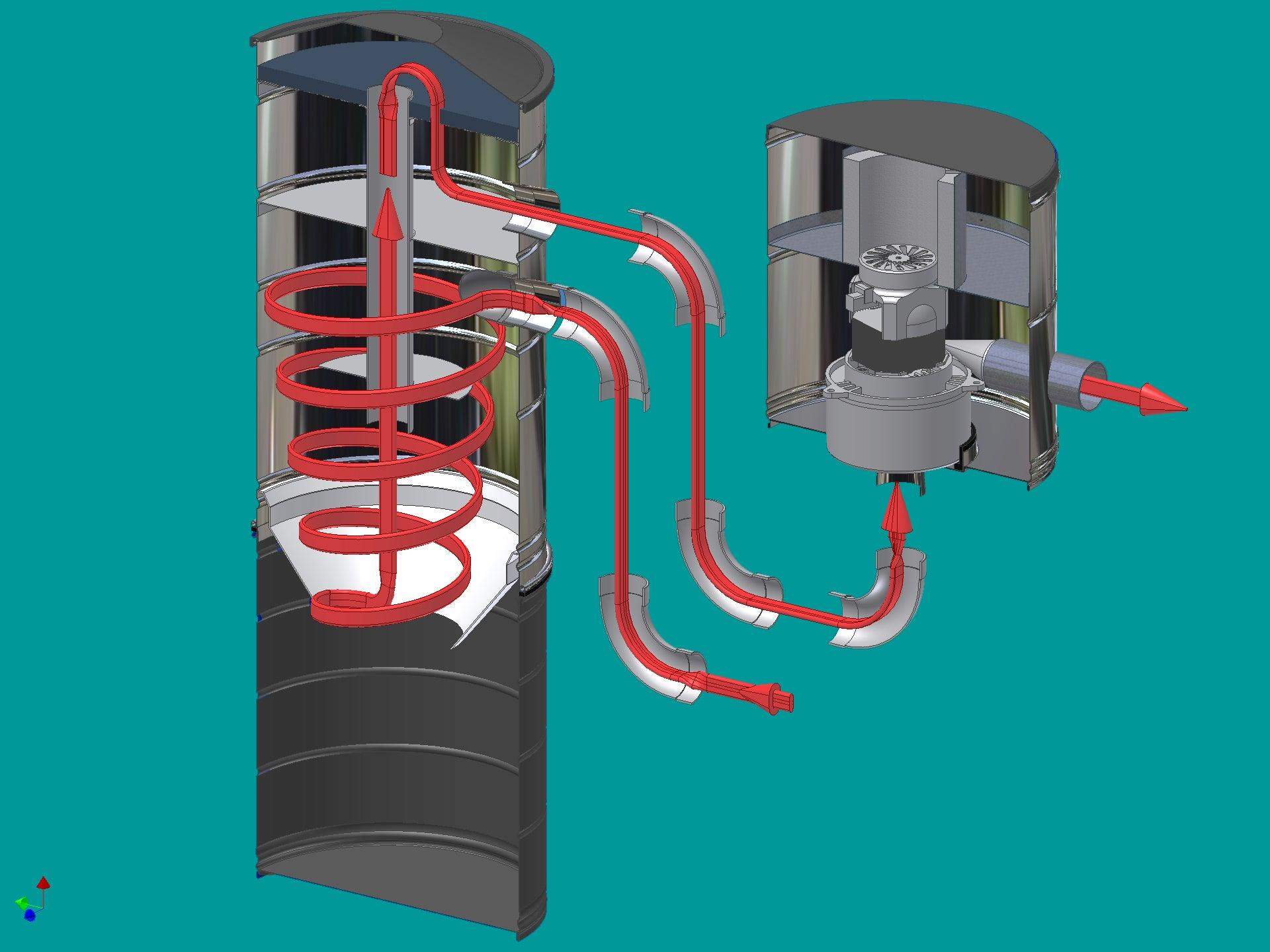

• Cyclonic Filtration with AirChannelTM – Allows a can liner to be used for mess-free debris disposal
No messy filters to clog or clean. Virtually 100% sustained cleaning power.
• Optional Plastic Bag Replacement Part #PB14MK

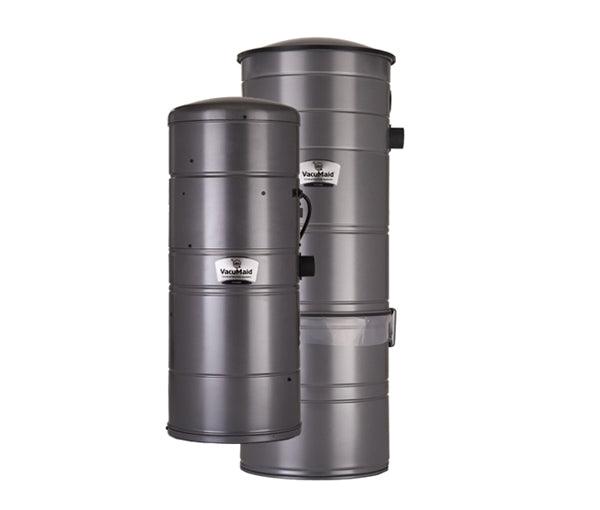

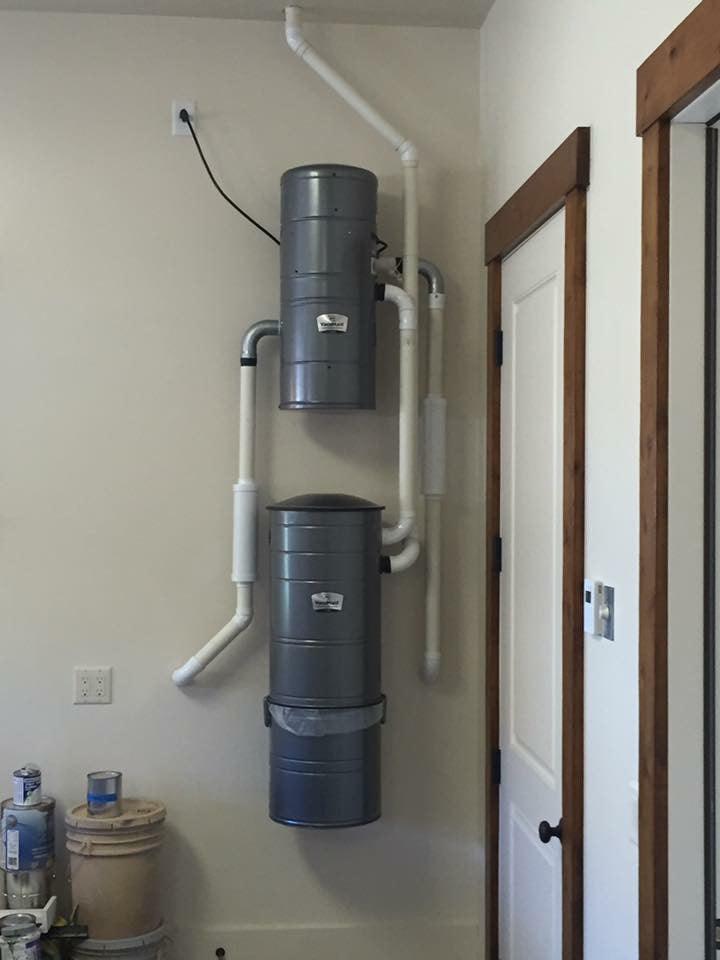

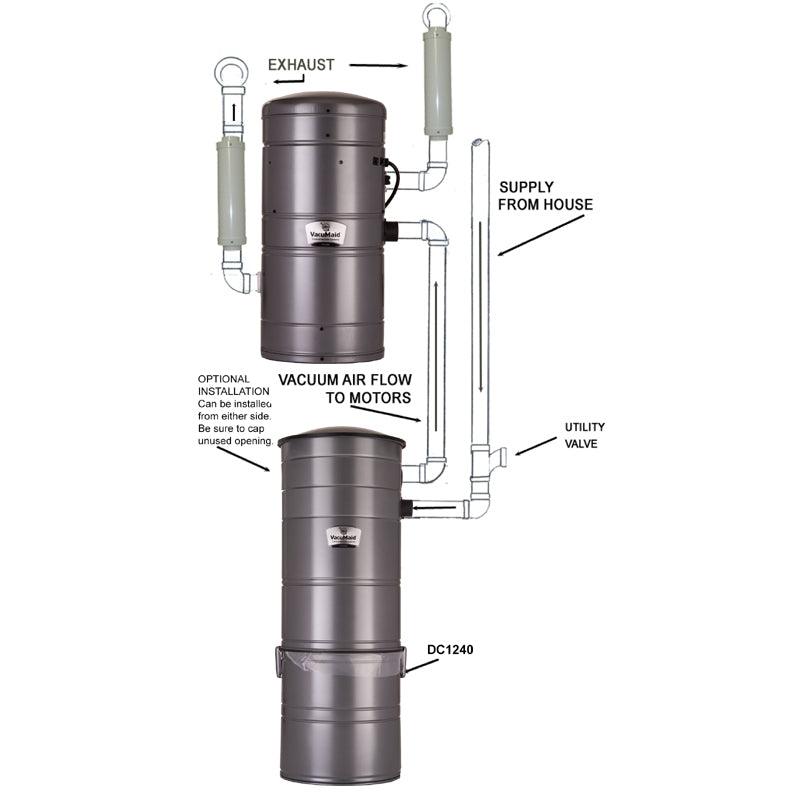

• Split Canister Design – Hang the 14” dirt canister in an easily accessible location & the motor in a location away from the living environment.
• This unit is suitable for some commercial applications.

• 10 Year Limited Lifetime Warranty
• Motor sustainability – Equipped with brush interrupters
• Hide-A-Hose Compatible
• Durable Steel Construction – Made from rolled galvanized steel
• Manufactured in the USA, Ponca City, OK
• Powder-coated for a tough, corrosion-resistant lifetime of use
• Allergy-reducing operation
• Convenient & easy to use
• Quickly installed in new or existing homes



Additional information

Voltage	240V
Stages	Two
Fan Diameter	7.2 Inches
Motor Type	Tangential ByPass
Sealed Vacuum	137 “H2O
Air Watts	1268
Max Airflow	229 CFM
