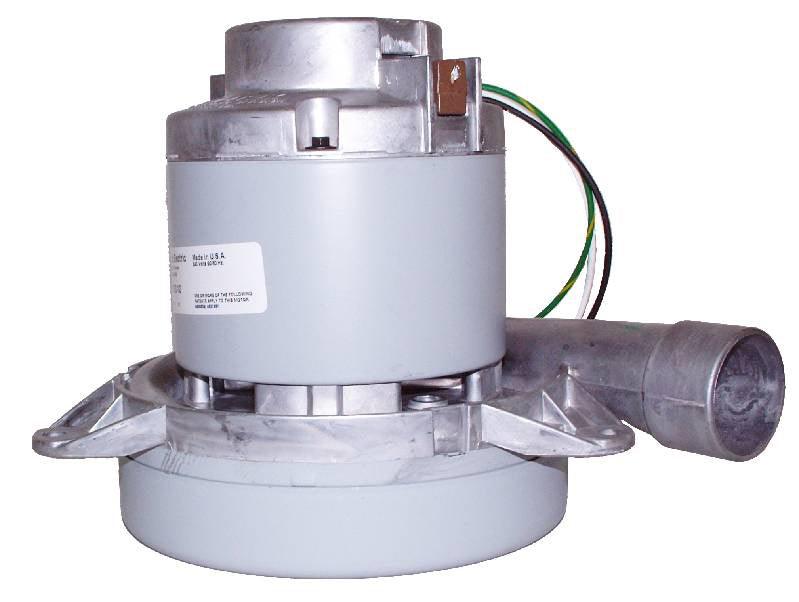

This motor was used in the following central vacuum models:
VacuMaid S3240 since March 2003.
Also used by other manufacturers including: Imperium, MD, Silent Master, and Vacuflo.
Replacement for 117157, 117201
|Basic Model Data|
|Volts: 240||Discharge: Tangential|
|Fan Stages: 2||Fan Diameter: 7.2 Inches|
|Type: Bypass||Bearings: Double Ball|
|General Motor Performance|
|Rating Watts: 1560||Air Watts: 482|
|Sealed Vacuum: 123.6 Inches||Max Airflow: 113.9 CFM|
|Motor Performance at Operating Orifice 3/4″|
|Vacuum: 68.8 Inches||Airflow: 59 CFM|
|Input Watts: 1451||Input Amps: 6.5|
|Air Watts: 477||Motor Speed: 17,245 RPM|
